Modular QRD Skyline Sound Diffuser Parametric Wall Art Acoustic Panel – 3.4k Hz – 10k Hz


  • Handmade
  • Materials: wood, steel hardware, aluminum channel
  • Read the full description
  • Height: 15 inches
  • Depth: 3.25 inches


CNC Machined Modular Sound Diffuser

This Modular CNC Diffuser is created using a stack of multiple plates, each with a randomized pattern of pegs and wells. This method allows for considerably more wells than conventional construction methods, and it provides an easy process to expand and reconfigure the final shape of the product to fit the space or personal aesthetic.

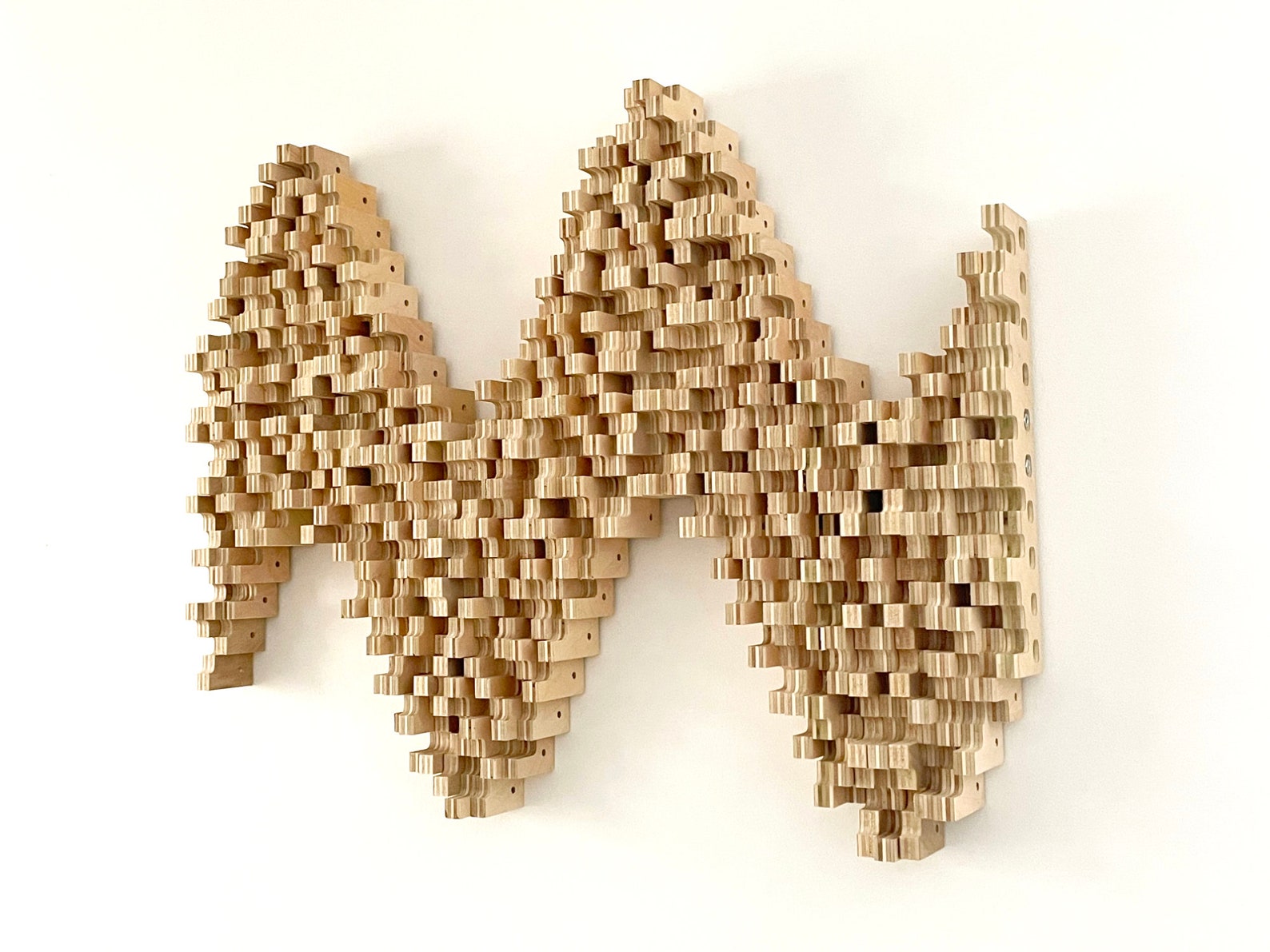

Each completed module can be assembled as a standard rectangle or any other number of shapes as the plates can be slid laterally and locked in place with the structural pins. Additional plates and pins can be added to make unique forms and even cover entire walls. Different variations of the plates, those tuned to other frequency ranges for example, can easily be included.

Features of this module:
– 1000 individual pegs/wells
– Designed for 3.4kHz – 10kHz
– Prime number of well depths (7)

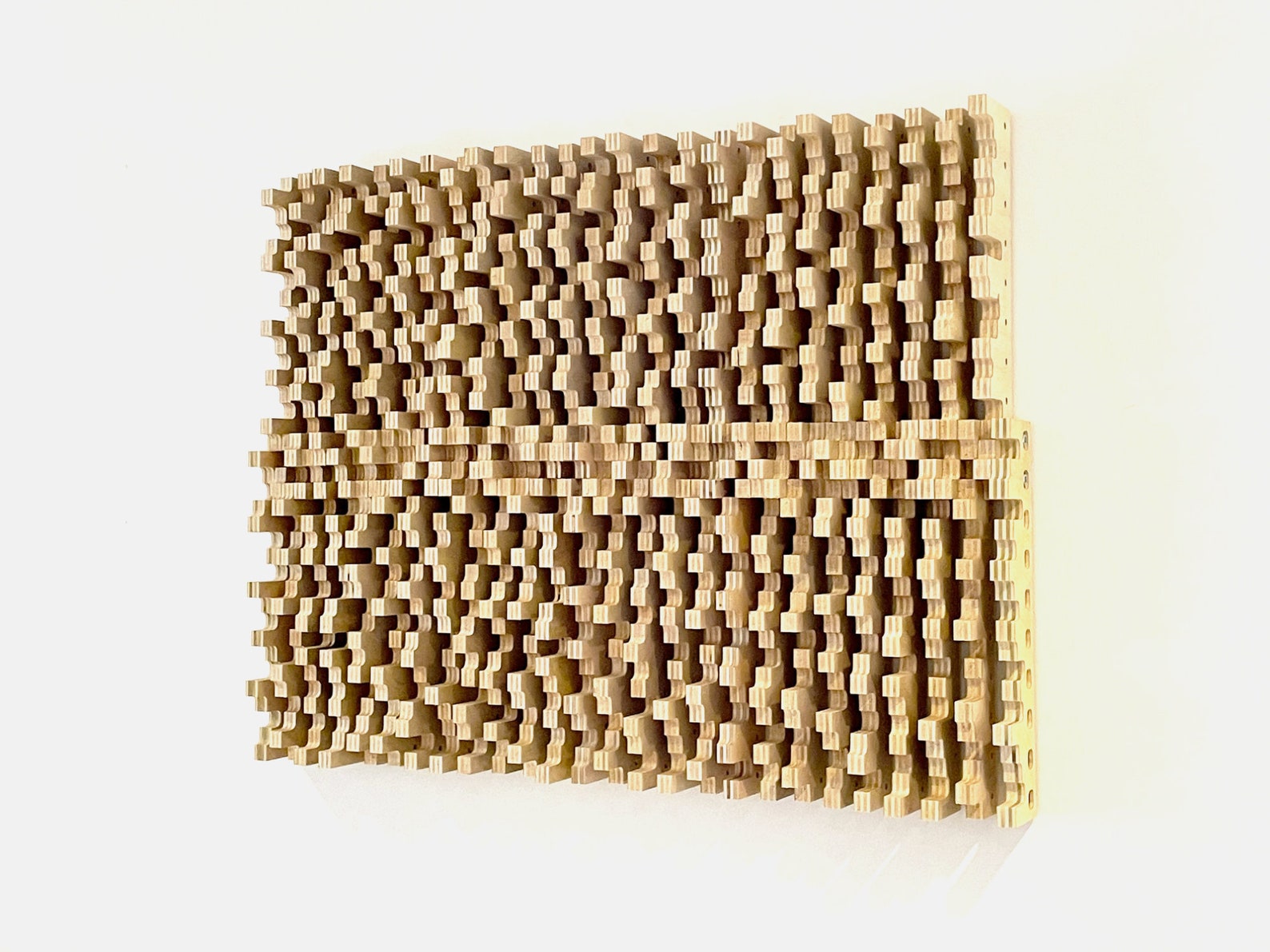

– Rectangle dimensions: 36″W x 15″H x 3.25″ D
– Interlocking Aluminum Z-Channel Mounting Hardware Included

Slight variation in color and texture is to be expected due to the differences in available construction materials. You delivered piece will be very similar to the example shown. Due to the intricate nature and sheer volume of surfaces on this piece, some areas may have a rougher finish.

Some assembly is generally needed. Instructions are included on how to stack and connect plates. They’re like an erector set. It’s fun and easy to make new shapes.

Mounting hardware is included. Since the pieces can be configured in so many ways, you will need to add this final detail. We include multiple pieces of aluminum z-channel so you have a secure mount to the wall, and infinite lateral adjustment to get it just right.

Please contact us with questions or for custom requests. We are always looking for new directions to go and would love to make something fit your specific needs!
